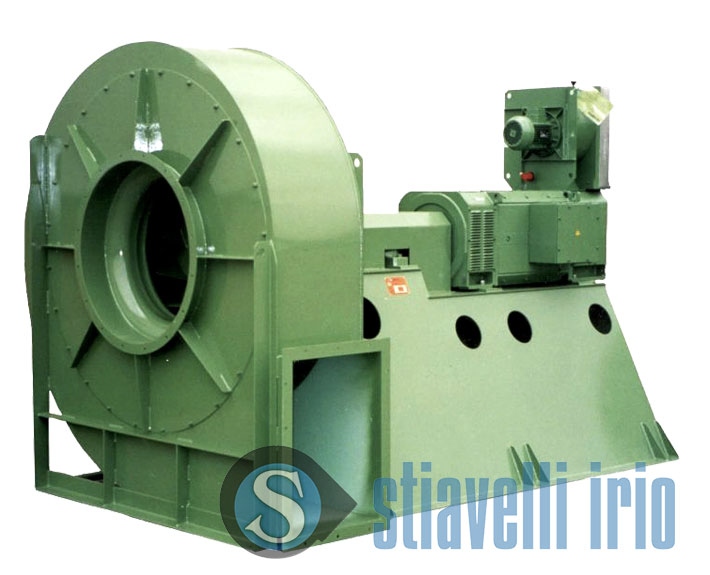

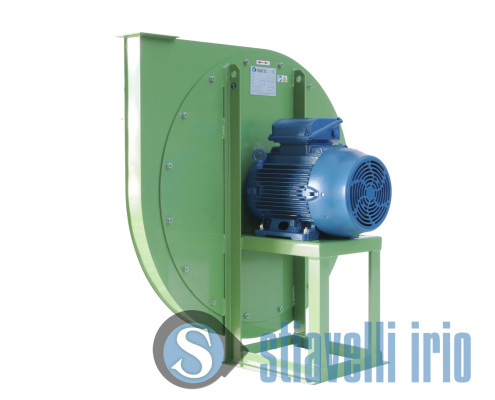

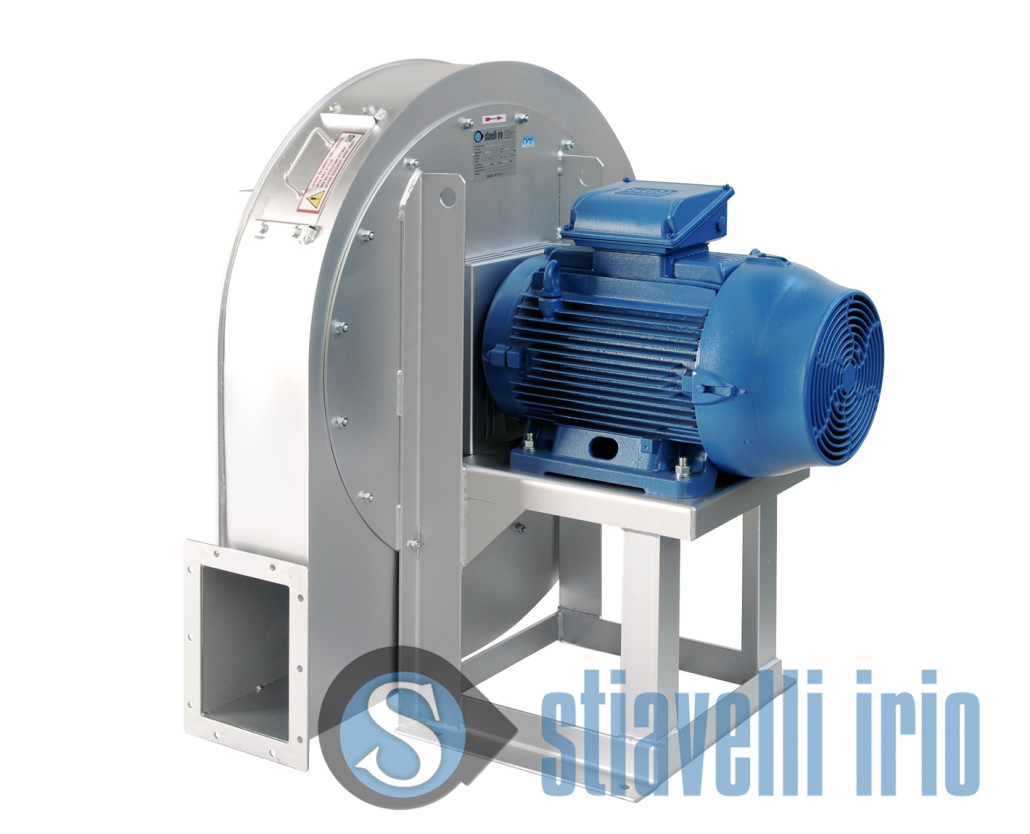

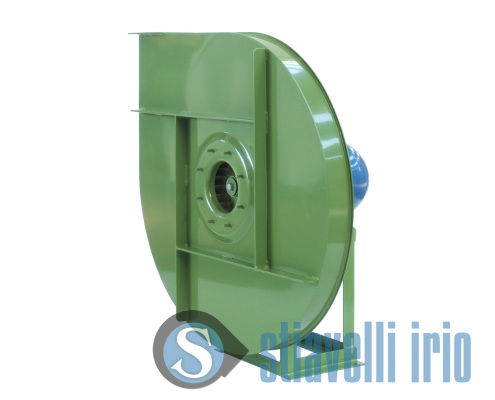

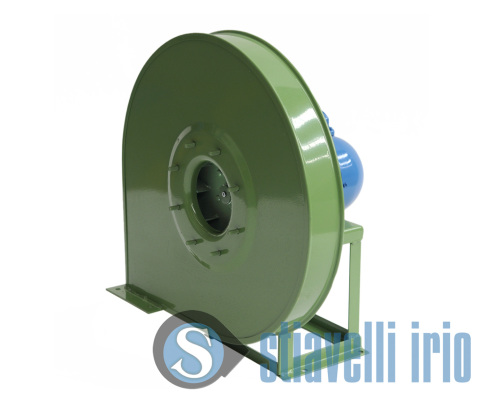

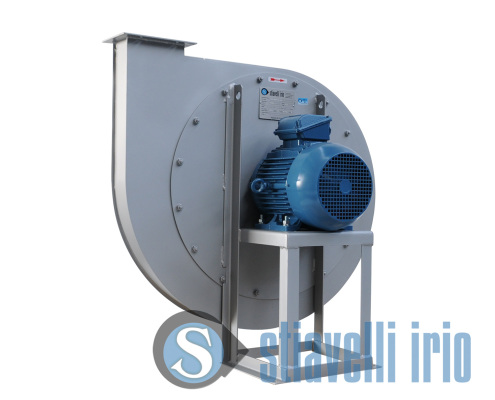

High Pressure Industrial Blowers
YHP…/N – YHP…/P Series

Range

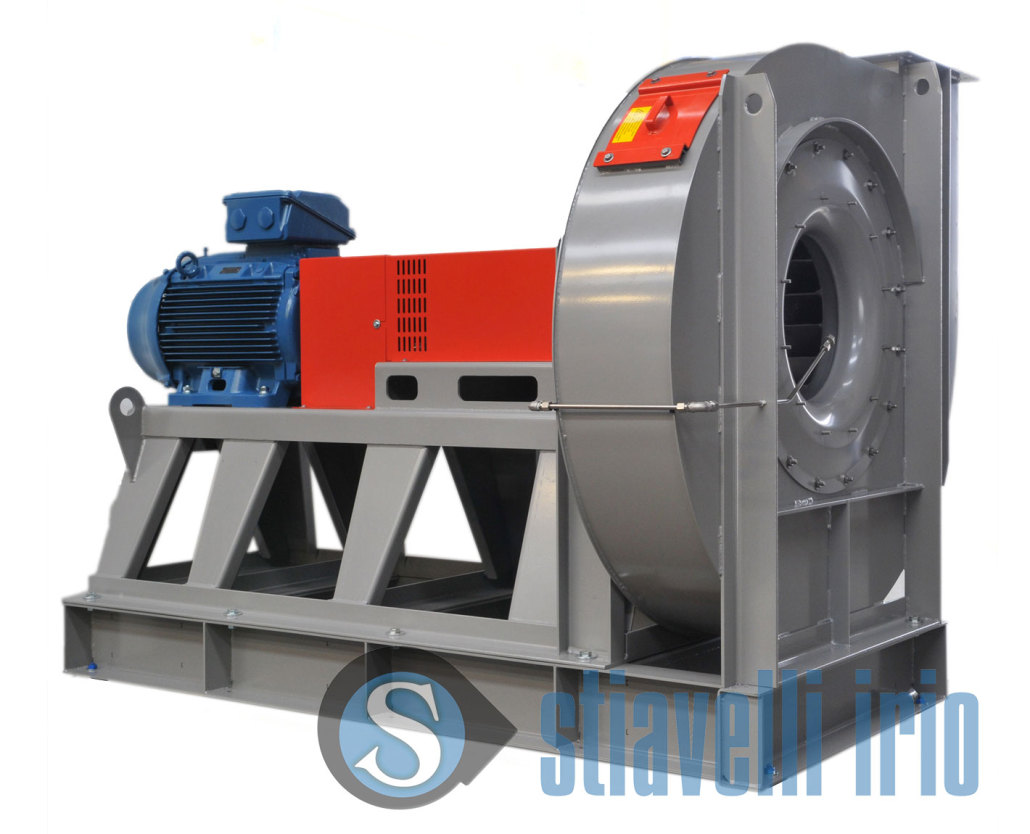

YHP…/N
V (m³/h) = 560÷242200
Pt (kg/m²) = 112÷2800

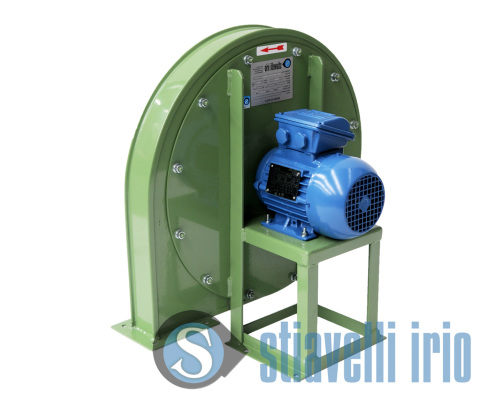

YHP…/P
V (m³/h) = 95÷32400
Pt (kg/m²) = 120÷1900
Features
Medium and High pressure industrial blowers.

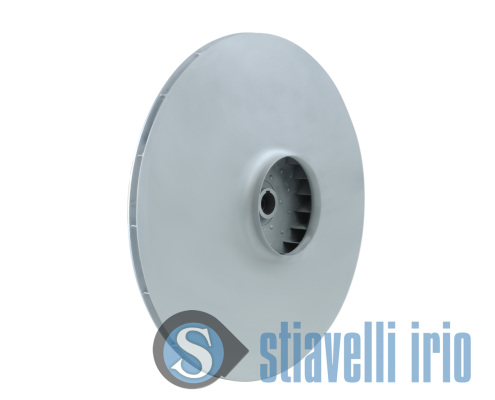

High-efficiency backward or forward blades impeller.
Direct-coupled motor with impeller splined on the shaft or Belt drive transmission.
It may be in N8 Execution with a direct coupling made through elastic joint and the impeller splined on ball bearing housing.
Temperature
Temperature allowed:
- Direct-coupled: Maximum fluid temperature allowed is 80°C or 150 °C if a cooling fan is installed
- Belt Drive or N8: Maximum fluid temperature allowed is 90°C or 350°C if a cooling fan is installed
In case of higher temperatures, some modifications to the fan structure are needed.
Typical Applications
This type of fan is suitable to suck clean, slightly dusty air.
- Ventilation systems
- Cooling processes
- Comburent feed
- Pressurization systems
- Depressurization systems
- Mechanical draught
- Granulate handling
- Flour and powder handling
- Low vacuum system
- Glass tempering
- Textile finishing
For further details please contact our technical department.
